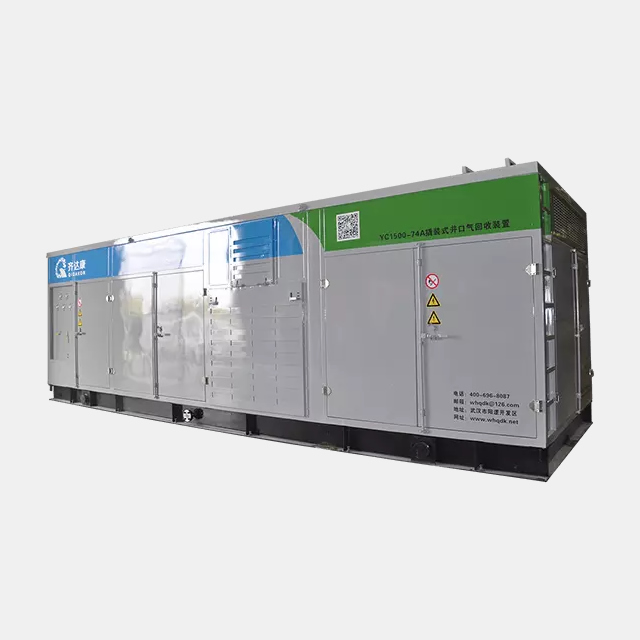

For low-efficiency wells, test wells and remote wells wellhead natural gas recovery, local production of CNG. finished products The dry gas recovery skid can adapt to the characteristics and working conditions of well gas, the installation is simple, the period is short, and it is convenient for the rapid transfer of equipment.
Application:
Equipment for low-efficiency wells, test wells and remote wells wellhead natural gas recovery, local production of CNG. finished products The recovery unit consists of seven systems:
A. Gas intake separation system
B. Supercharging system
C. Drying system
D. Control system
E. Filling metering system
F. Fuel gas supply system
G. Housing system
Technical Parameters:
Technical specifications | Type of equipment | ||
YC1000-44 | YC1500-74 | YC1500-135 | |
Structure form | Sled | Sled | Sled |
Air intake pressure (MPa) | 3-20 | 3-20 | 3-8（3-20） |
Exhaust pressure (MPa) | 25 | 25 | 25 |
Gas treated ( Nm3d) | 10000-20000 | 20000-50000 | 20000-50000 |
Amount of treatment (t/d) | 20 | 50 | 50 |
Motor power (kW) | 22+22 | 37+37 | 45+45+45 |
Total power (KW) | 70 | 110 | 170 |
Fuel tank (L) | 600 | 1000 | 1000 |
(Nm) Scope of measurement3h) | 1-4000 | 1-4000 | 1-4000 |
Dimensions (m) | 6.6×3×3 | 9×3×3 | 10×3×3 |
Weight (t) | 18 | 22 | 24 |
Characteristics:
A. Skidding, high degree of integration, good flexibility, short construction period.
B.High degree of automation, centralized control points, low labor intensity.
C. Compressor adopts hydraulic piston type, which has the characteristics of wide intake range, energy saving, no leakage, very low failure rate and simple maintenance, so it can better adapt to the characteristics of large variation of wellbore pressure range.
D. No need to be equipped with water jacket furnace and pressure regulating equipment, safety risks are small, no throttling energy waste.
E.Use high pressure post dehydration, dehydration effect is good, conducive to product sales.
F. Recovery process equipment has strong adaptability to wellhead pressure and components, and the equipment input cost is small.
