• 2YZ2300-110 Natural Gas Compressor for Refueling Station
2YZ2300-110 Natural Gas Compressor for Refueling Station

2YZ2300-110 Natural Gas Compressor for Refueling Station

In stock
2YZ2300-110
Qidakon
Natural Gas Compressor

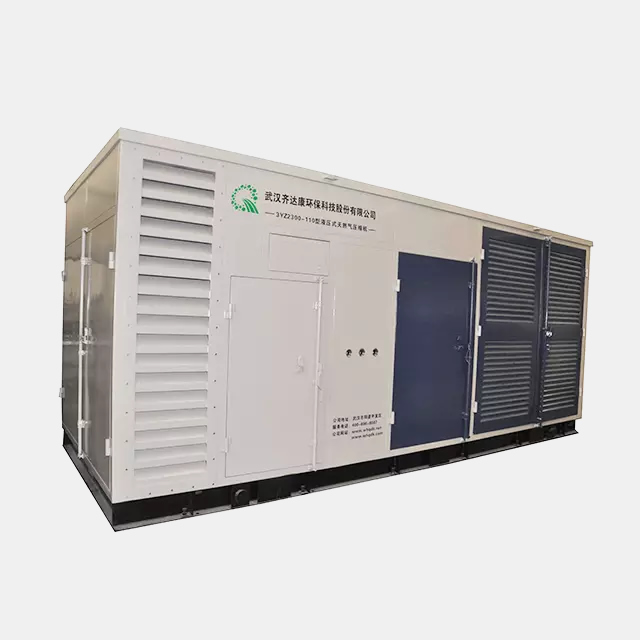

The 3YZ2300-110 natural gas hydraulic compressor unit is suitable for CNG refueling sub-stations with a daily gas output of 23000-30000Nm3, and can be used in gas station processes with gas storage wells or gas storage cylinders
CONTACT US

Your email address will not be published. Required fields are marked with *

description

The 3YZ2300-110 natural gas hydraulic compressor unit is suitable for CNG refueling sub-stations with a daily gas output of 23000-30000Nm3, and can be used in gas station processes with gas storage wells or gas storage cylinders


Parameter Reference

Operating temperature (℃)

-40-40

Inlet pressure (MPa)

3-20

Discharge pressure (MPa)

25

Flow rate (Nm3/h)

600-4000

Ave. Flow rate (Nm3/h)

2300

Motor Power (kW)

110

Ave.power consumption (kW.h/Nm3)

0.04

Noise (dB (A)

≤75

Size (mm)

6040×2600×2860

Total Power (kW)

125


Features

(1)Equip with gas storage well pressure gauges and detectors, reasonable adjustment of gas station inflation sequence and gas well pressure.

(2) Realize the staggered gas supply and reduce the energy consumption of gas filling stations.

(3) Equip with combustible gas detection alarm, strictly monitor gas leakage.

(4) With RS-485 communication interface, it can be used for network expansion.

(5) The unit comes with instrument air, without external control air.
